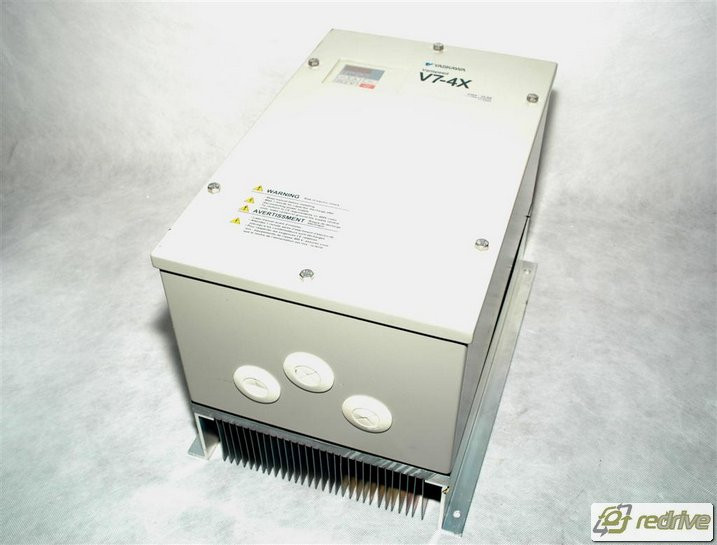

10HP 230V Yaskawa V7-4X Varispeed CIMR-V7CU27P54 V74X

$0.00 - Email me the quote or
Submit online question to us
SKU:
CIMR-V7CU27P54
Condition:
Refurbished
Availability:
Call 1-847-886-2616 or email to support@redrive.net for available purchasing, exchange or repair options and pricing
Quantity:

Product Description

10HP 230V Yaskawa V7-4X Varispeed CIMR-V7CU27P54 V74X AC Drive VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

High performance Variable Frequency AC Drive / Spindle for induction motors.

Features

The V74X Drive is low cost, compact, and operable in V/f or Open Loop Vector mode. In addition to good speed regulation, open loop vector control also provides higher torque at lower speeds. The V74X is ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans, blowers, machine tools, packaging, food processing, and commercial laundry. The V74X drive with integral NEMA 4X/12 enclosure is recommended for wet and dusty indoor environments, instead of the V7 drive. For DeviceNet network applications, the V7N with embedded Device Net is recommended. All functions standard V7 drive.

V74X Drive Documentation and Manual available

Specification:

Part NumberCIMR-V7CU27P54 or CIMR-V7CU27P5 or CIMR V7CU 27P5
Rated Input200 - 240VAC (3-Phase or 1-Phase) 45Amp 50-60Hz
3-Phase Input - Rated OutputAC3PH 10HP 33Amp 0-400Hz
1-Phase Input - Rated OutputAC3PH 7HP 21.8Amp 0-400Hz
Temperature Range-10C to +40C (14F to 105F)
Protection levelNEMA4 ENCLOSURE Type 4X/12
VFD efficiency95%
Overload capability150% for 60 seconds
Control methodV/F, Open loop vector control
Frequency resolution0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
Digital inputs7 multi-function digital inputs
Serial interfaceRS-485/RS-422 serial communication port (up to 32 nodes)
StandardsUL, cUL, CE
Shipping weight52 lb
