Schneider Electric

LC1D65G7 Schneider Electric Contactor Non-Reversing 80A 120VAC coil

$0.00 Email to us or
Submit online form

Overview Reviews Similar Products

Product Description

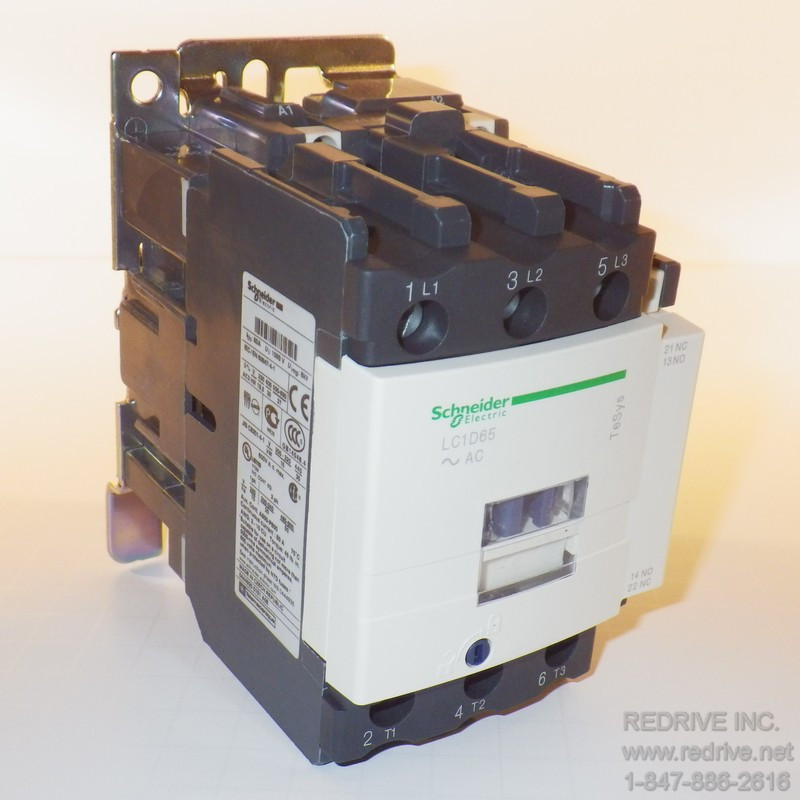

Schneider Electric LC1D65G7 Contactor 3-Pole Non-Reversing 80A 120VAC coil LC1D65AG7
Condition: New. Original brand new in the factory package. Real genuine Schneider Electric product, made in Czech Republic. Item location: IL, USA. Mfg. Product page.
Also known as LC1D65G7 Telemecanique / Square D Contactor

Features:

Contactor (TeSys D) Non-Reversing, 65A(AC3) 80A(AC1), 3-Pole (3 NO)

Specification:

Category:	TeSys D-Line LC1D IEC Contactors
Manufacturer:	Schneider Electric
Mfg ID / Part Number:	LC1D65G7, LC1 D65 G7, LC1D65AG7
Contact Configuration:	3-Pole (3 NO)
Inductive Amperes (AC3):	65A
Resistive Amperes (AC1):	80A
Coil Voltage:	120VAC@50/60Hz, G7
Coil Consumption Inrush:	140 VA
Coil Consumption Sealed:	13 VA
Horsepower Rating (1-Phase):	5HP@115Vac - 10HP@230Vac
Horsepower Rating (3-Phase):	20HP@200/230Vac - 50HP@460/575Vac
Contactor Type:	Non-Reversing
Type:	TeSys D
Maximum Voltage Rating:	600 VAC
Terminal Type:	Screw Clamp
Mounting Style:	35mm DIN Rail
Auxiliary Contacts:	1NO-1NC
Features:	Touch-Safe Terminals for Power Cabling
Dimensions:	H:122mm x W:55mm x D:120mm
Power Wire Size:	#12 to #20 AWG
Approvals / Standards:	UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant
Country of Origin:	CZ
Shipping weight:	5 lb
