LC1DT40G7 Schneider Electric Contactor Non-Reversing 40A 120VAC coil

$0.00 - Email me the quote or
Submit online question to us

Overview Reviews Similar Products

Product Description

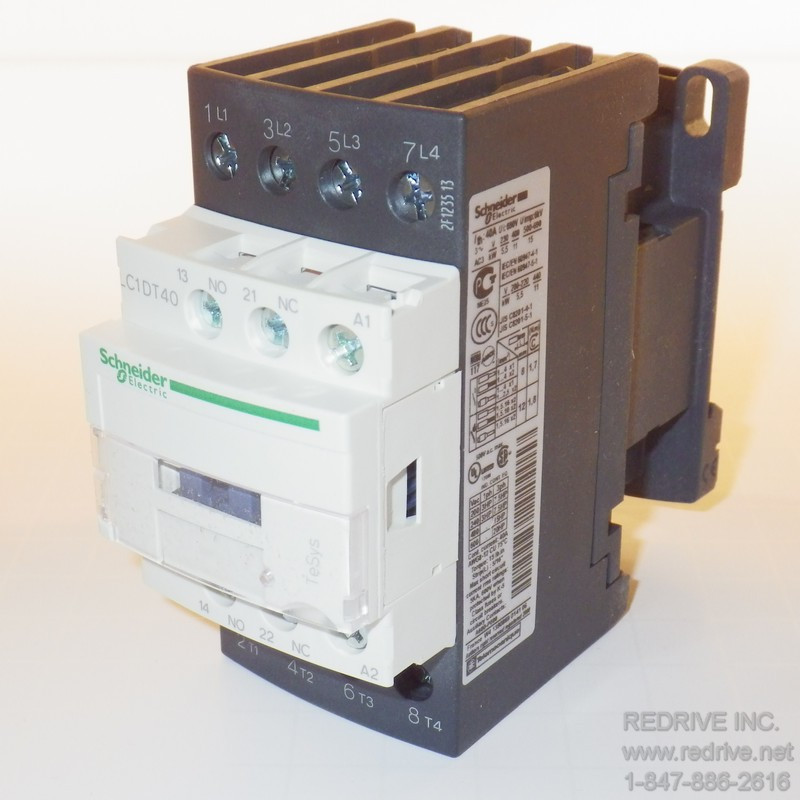

Schneider Electric LC1DT40G7 Contactor 4-Pole Non-Reversing 40A 120VAC coil
Condition: New. Original brand new in the factory package. Real genuine Schneider Electric product, made in France. Item location: IL, USA. Mfg. Product page.
Also known as LC1DT40G7 Telemecanique / Square D Contactor

Features:

Contactor (TeSys D) Non-Reversing, 40A(AC1), 4-Pole (4 NO)

Specification:

Category:	TeSys D-Line LC1D IEC Contactors
Manufacturer:	Schneider Electric
Mfg ID / Part Number:	LC1DT40G7, LC1 DT40 G7, LC1D-T40-G7
Contact Configuration:	4-Pole (4 NO)
Inductive Amperes (AC3):	Not Rated
Resistive Amperes (AC1):	40A
Coil Voltage:	120VAC@50/60Hz, G7
Coil Consumption Inrush:	70 VA
Coil Consumption Sealed:	7.5 VA
Horsepower Rating (1-Phase):	Not Rated
Horsepower Rating (3-Phase):	Not Rated
Contactor Type:	Non-Reversing
Type:	TeSys D
Maximum Voltage Rating:	600 VAC
Terminal Type:	Screw Clamp
Mounting Style:	35mm DIN Rail
Auxiliary Contacts:	1NO-1NC
Features:	Touch-Safe Terminals for Power Cabling
Dimensions:	H:91mm x W:45mm x D:99mm
Power Wire Size:	#10 to #18 AWG
Approvals / Standards:	UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant
Country of Origin:	FR
Shipping weight:	2 lb
