Product Description

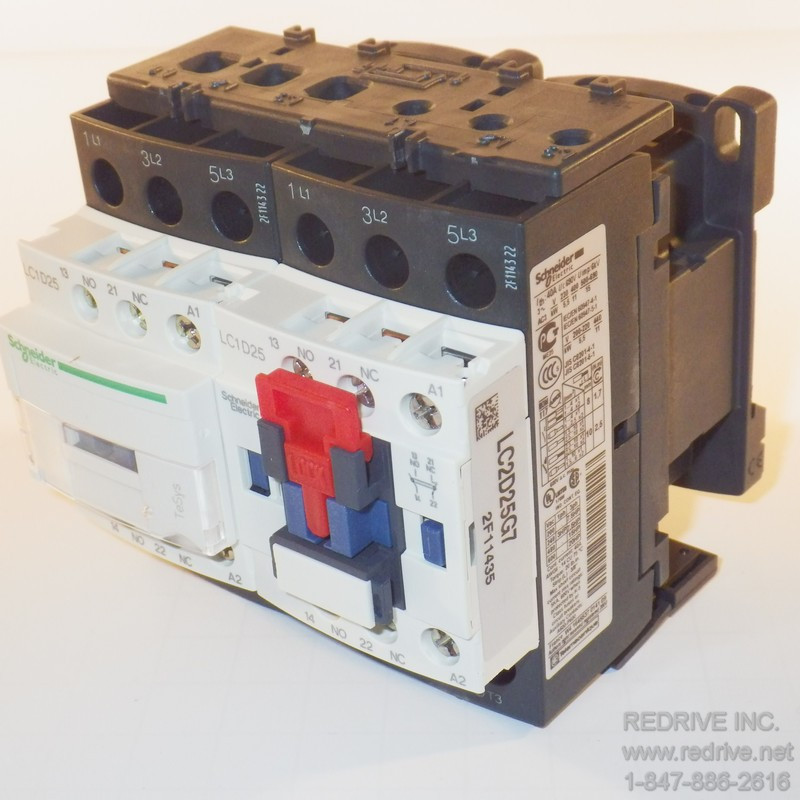

Schneider Electric LC2D25T7 Contactor 3-Pole Reversing 40A 480VAC coil
Condition: New. Original brand new in the factory package. Real genuine Schneider Electric product, made in France. Item location: IL, USA. Mfg. Product page.
Also known as LC2D25T7 Telemecanique / Square D Contactor

Features:

Contactor (TeSys D) Reversing, 25A(AC3) 40A(AC1), 3-Pole (3 NO)

Specification:

Category:	TeSys D-Line LC2D IEC Contactors
Manufacturer:	Schneider Electric
Mfg ID / Part Number:	LC2D25T7, LC2 D25 T7, LC2D-25T7
Contact Configuration:	3-Pole (3 NO)
Inductive Amperes (AC3):	25A
Resistive Amperes (AC1):	40A
Coil Voltage:	480VAC@50/60Hz, T7
Coil Consumption Inrush:	70 VA
Coil Consumption Sealed:	7.5 VA
Horsepower Rating (1-Phase):	2HP@115Vac - 3HP@230Vac
Horsepower Rating (3-Phase):	7.5HP@200/230Vac - 15HP@460Vac - 20HP@575Vac
Contactor Type:	Reversing
Type:	TeSys D
Maximum Voltage Rating:	600 VAC
Terminal Type:	Screw Clamp
Mounting Style:	35mm DIN Rail
Auxiliary Contacts:	1NO-1NC
Features:	Touch-Safe Terminals for Power Cabling
Dimensions:	H:85mm x W:90mm x D:92mm
Interlock:	Mechanical
Approvals / Standards:	UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant
Country of Origin:	FR
Shipping weight:	4 lb
